DIY Floating Acrylic Frames with Perforated Metal Accents

Floating frame on fireplace mantel
Don’t you love it when a hare-brained idea just happens to work out? You know what I mean: you get that vision in your head and you aren’t sure it is going to work, but when it does, it is AWESOME!  Well, that is how I feel about the simple project I’m sharing today: These Plexiglass and Sheet Metal DIY Floating Frames.
DIY floating frame with metal accents
I have always wanted to make some floating frames, but I didn’t want them to be completely transparent, I wanted them to have some sort of detail, and that is exactly what I got by adding a sheet of perforated sheet metal to the mix.
DIY plexiglass and metal floating frame
I love that you still get that district “framed” feel to your art, but it is still transparent, so you can see the wall color behind it, and you still get the floating frame vibe. DIY industrial style floating frame
Of course, a plain sheet metal and plexiglass floating frame is can be quite industrial looking, so to soften it up more for my aesthetic, I mounted one inside of an old wooden mail tray I had, and I suddenly had the perfect yin and yang of industrial and rustic.
Make this pretty and modern floating frame. With perforated sheet metal and plexiglass, you can get a clean geometric look, or make it more rustic with the additional of reclaimed wood accents. Such a quick and easy project and a great way to display printables!
And once the frame was mounted inside of the tray, I no longer needed a way to display it.  DESKTOP FLOATING FRAMES! I love it! I am pretty sure I’m going to find a home for them in my sewing room.
Do more of what you love DIY floating frame


I am so thrilled with just how great this project turned out, especially for as easy as it was.
DIY Floating Frames Supply List:
- 11x14 Sheet of plexiglass or framing plastic
I purchased anti-glare plaskolite sheets from Home Depot, but there are lots of options available online, including thicker, less flexible plexiglass sheets
30 mm Standoff Hardware
 -M-D Perforated Metal Sheets (12x24)M-D Hobby & Craft have a bajillion designs and metal choices. I used the the Aluminum Union Jack pattern for this since it matched the chrome finish of the standoff hardware.  The 12 inch sheets are EXACTLY 11 inches wide when you cut off the border, which is perfect for the 11x14 sheet of plexiglass.
-Craft Tin Snips You may also want to wear leather gloves since the cut metal can be sharp.
- Course Sanding Block
- Drill or Drill Press
- 3/8th inch Forstner bit
-Artwork to display (if you need ideas, I have TONS of printables that would be perfect!)
-Wall Mounting hardware
The standoff hardware is designed to be hung on the wall with screws. But I actually hung mine with heavy duty mounting squares so it could be permanent or removable.

Perforated Sheet Metal DIY frame project
Tutorial:

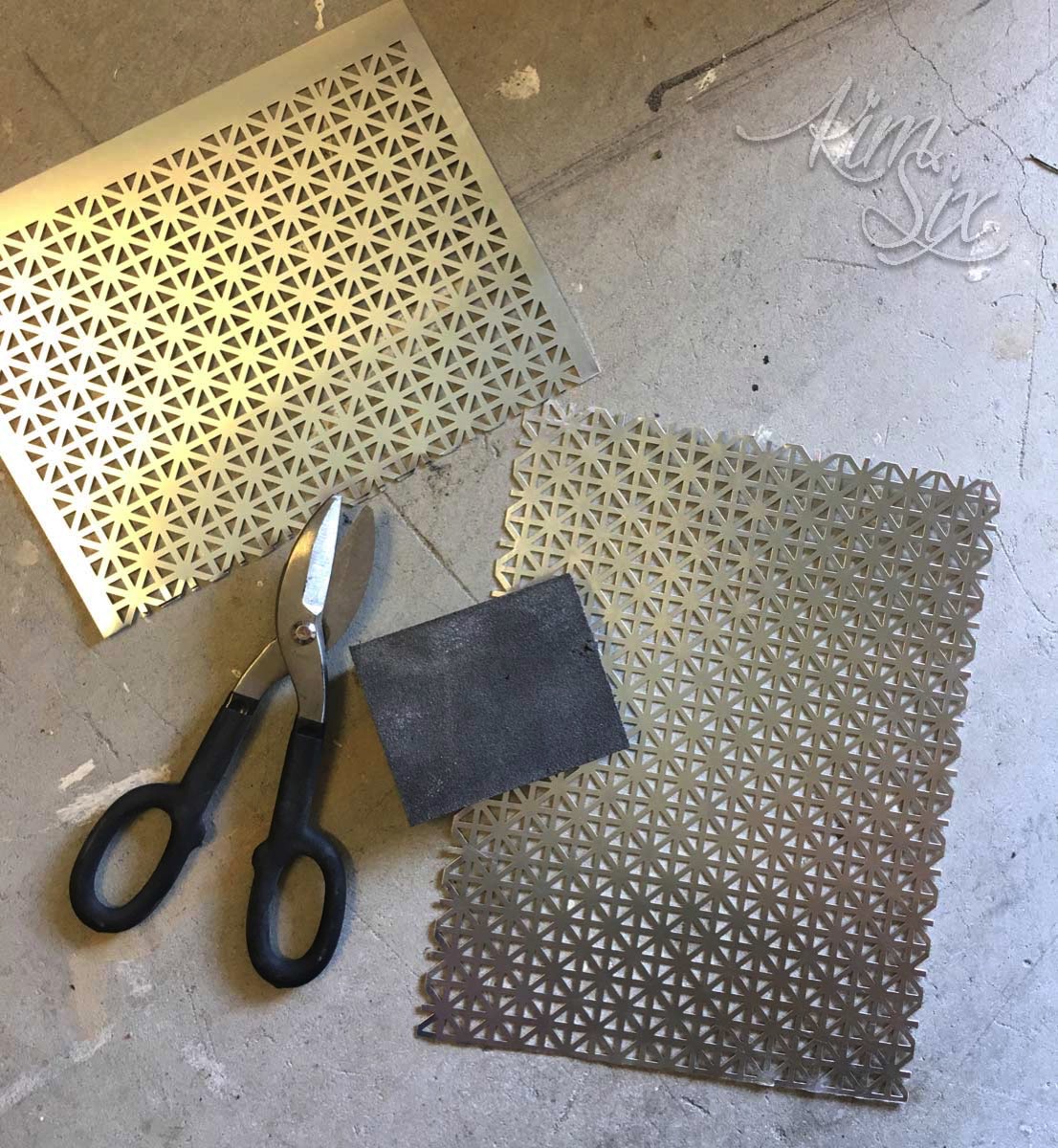

I first cut down the aluminum sheet to the exact size of the 11x14 sheet of plexiglass, and I used my sanding block to smooth off the sharp cut edges.  (The aluminum is pretty thin and will bend, so make sure you support the metal on a flat surface and only sand the very edge.)
Cutting performated decorative metal sheets for photo frame

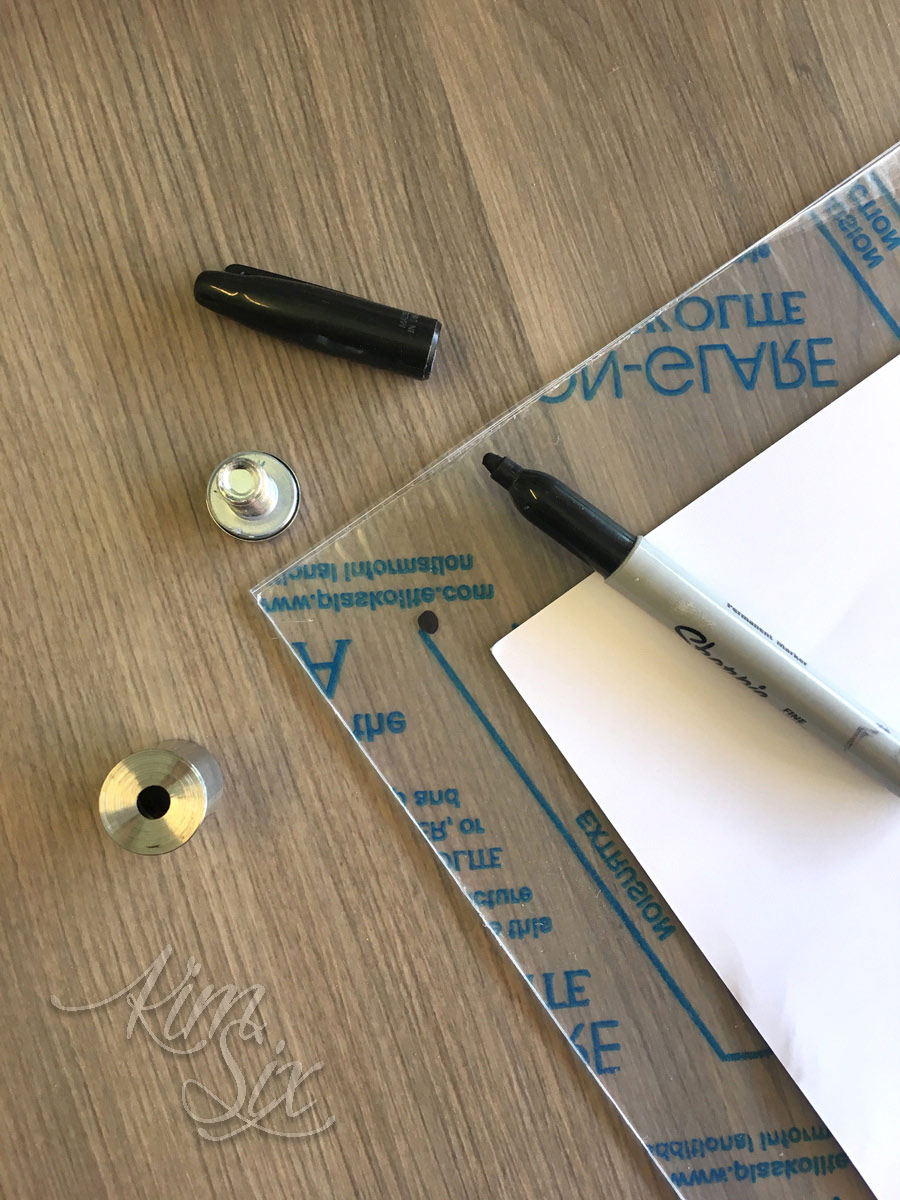

Next I marked where I wanted my four standoffs (the hardware that holds the frame away from the wall) would be placed on my plexiglass sheet (make sure to leave enough room for your artwork in the middle!)
Tip: Don’t remove the protective sheet from the plexiglass until the VERY LAST STEP.
Marking plexiglass for standoff frame

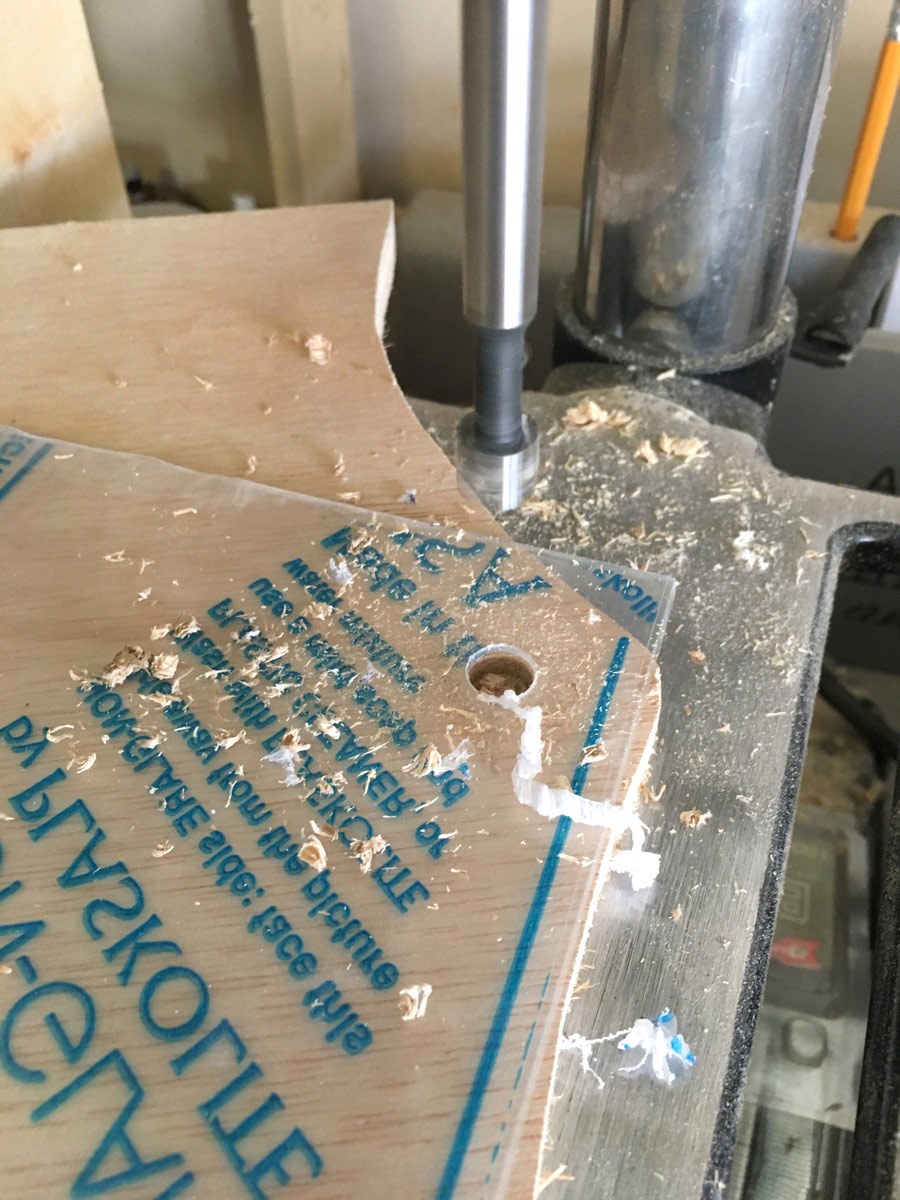

Carefully supporting the plexiglass on a piece of scrap wood (otherwise it will bend and crack) drill through it on your four marks.

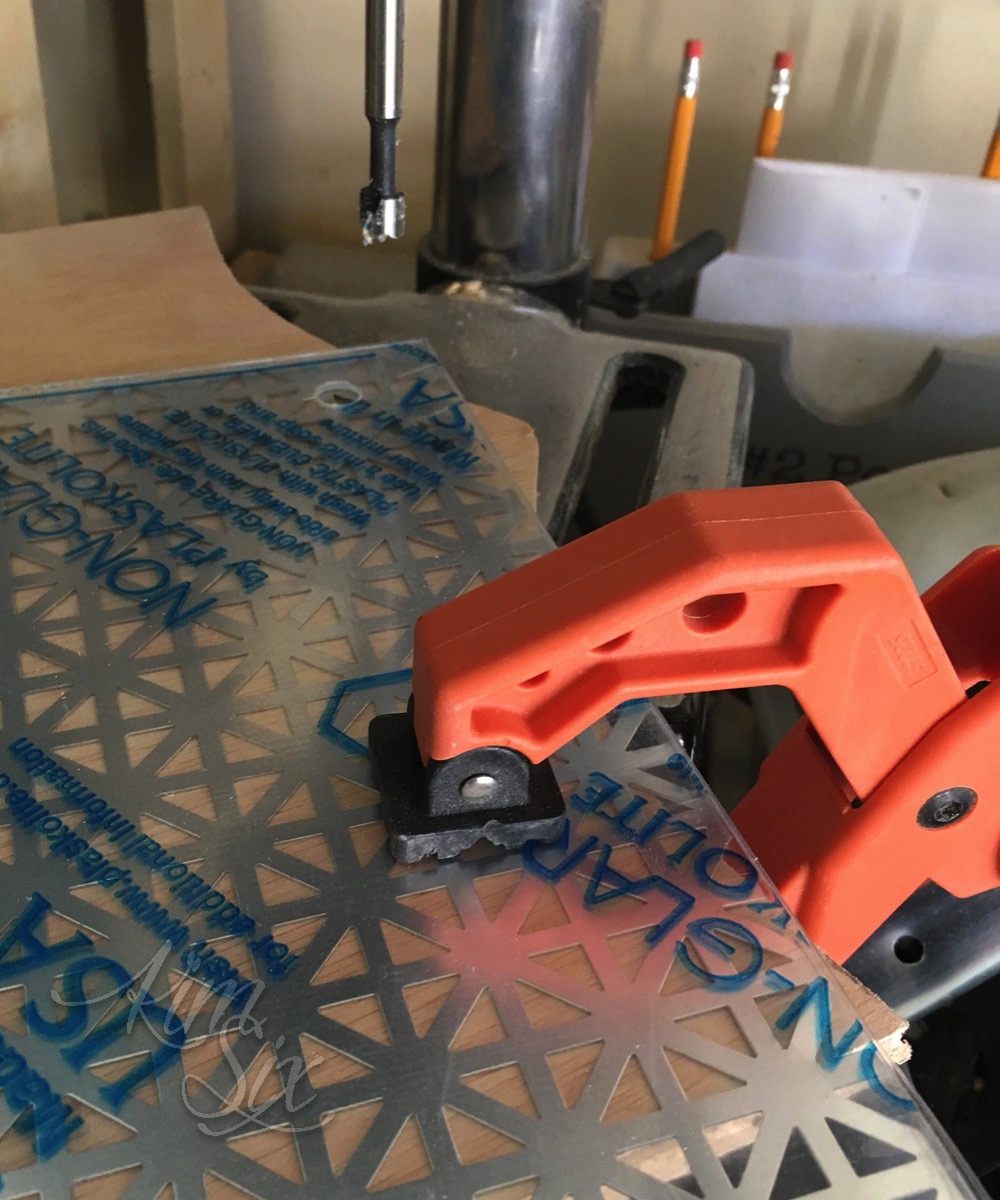

Drilling through plexiglass for photo frameI drilled the plexiglass first and then used it those four holes as my template to drill through the metal.  I used clamps to keep the plastic and the metal sheet lined up exactly. The plastic helps hold the aluminum down.

The sheet metal wants to kick out since the drill bit doesn’t catch evenly, so be really careful on this step.
Drilling through sheet metal and plexiglass for floating frame
If you are really daring you could sandwich both the metal and plexiglass and drill through them both at the same time.
Luckily if the hole is a little ugly it won’t matter, there is a decent amount of overhand with the mounting hardware to cover up any rough edges.

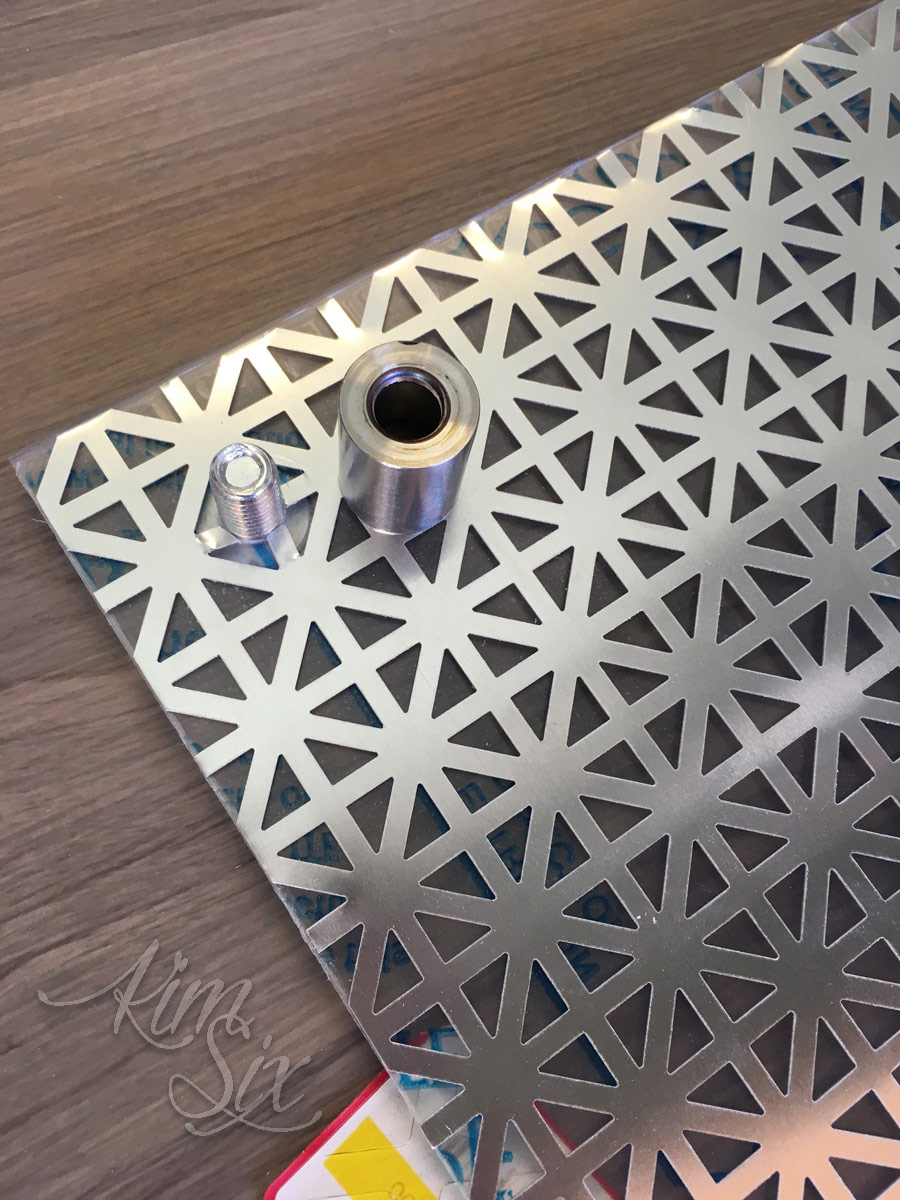

Standoff hardware for DIY floating frames
Now it is time to sandwich your metal sheet, your artwork and the plexiglass and then push the screws on the standoffs through.
Floating frame from plexi and sheet metal
Tip: If you are mounting on the wall with screws, I would put all the hardware ON your artwork, put them up on the all, mark where each screw will go and then take them apart to attach them. Dont’ try to mount the hardware to the wall first and then line it up with your artwork.

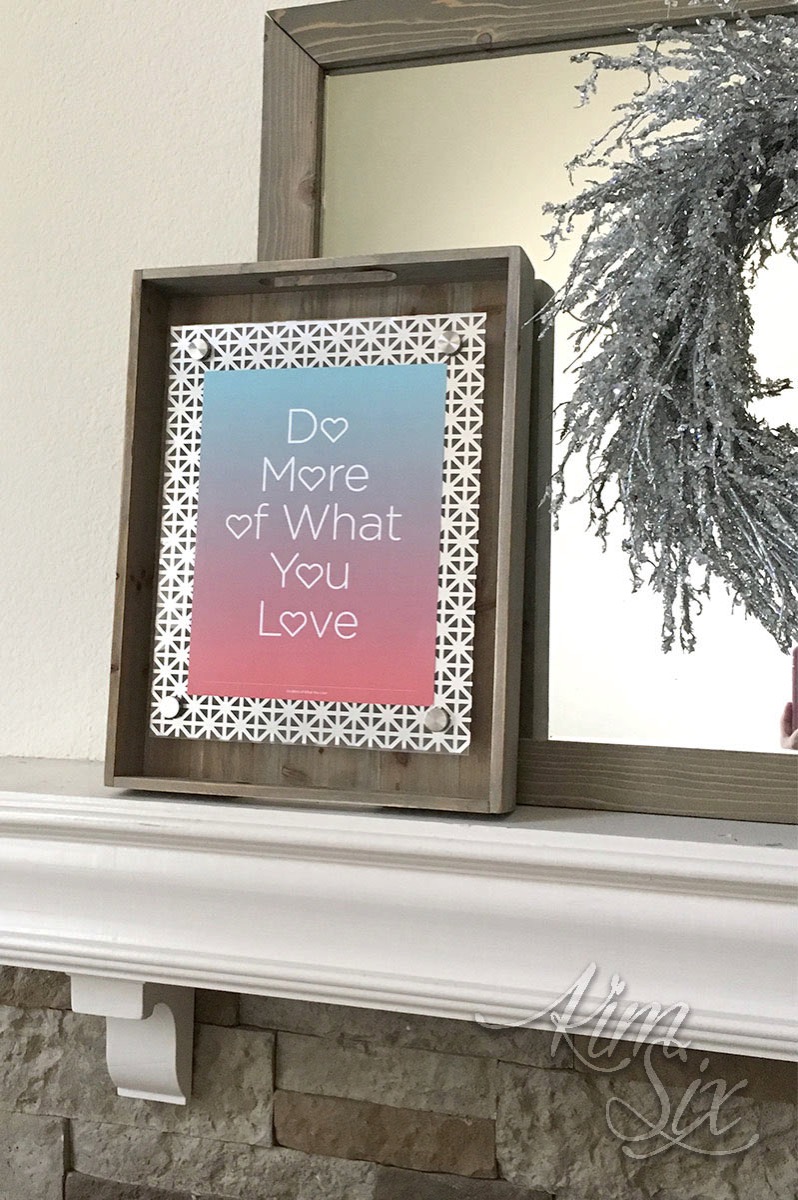

I even tried mounting mine inside a wooden tray, and I loved it so much!
Make this pretty and modern floating frame. With perforated sheet metal and plexiglass, you can get a clean geometric look, or make it more rustic with the additional of reclaimed wood accents. Such a quick and easy project and a great way to display printables!
The whole process only took me about 20 minutes and it looks a lot more complicated than that.  Don’t you love it when that happens?
This project was part of this month’s Power Tool Challenge, featuring these other amazing bloggers and their projects.  Don’t miss THIS COLLECTION OF OTHER FRAMES AND ARTWORK DISPLAY IDEAS:
The DIY Village - DIY Wood Shim Picture Frame
My Repurposed Life - Printable Pallet Frame
Refresh Restyle - How to Make a Photo Display

Make this pretty and modern floating frame. With perforated sheet metal and plexiglass, you can get a clean geometric look, or make it more rustic with the additional of reclaimed wood accents. Such a quick and easy project and a great way to display printables!
